Tonneau-Compatible Bed Racks
Aluminum bed racks that work with roll-up, folding, and hard tonneau covers. Bed Bars fit almost every cover style — keep your tonneau, add your gear. Made in Canada.
Elite Series Bed Bar System V2
Elite Series Bed Bar System
Elite Series Bed Rack - T-Slot Tonneau Mount
Elite Series Aluminum Bed Rack

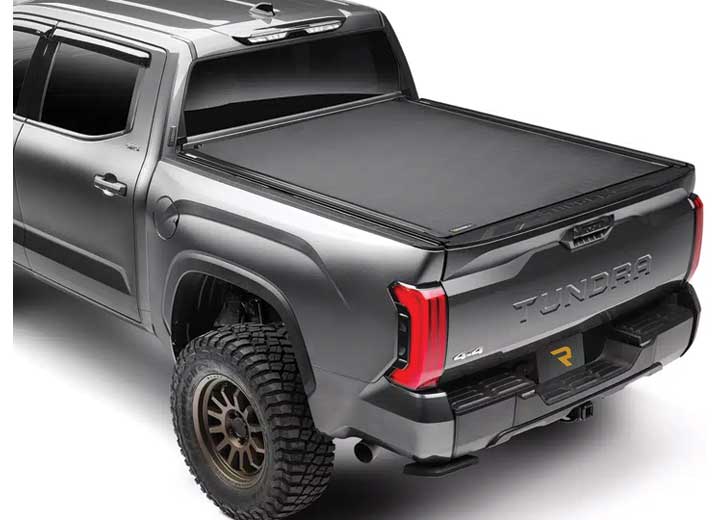

Bak Revolver X4ts Hard Roll Up Tonneau Cover w/ T-Slot Rails
RetraxONE XR Manual Retractable Tonneau Cover w/ T-Slot Rails

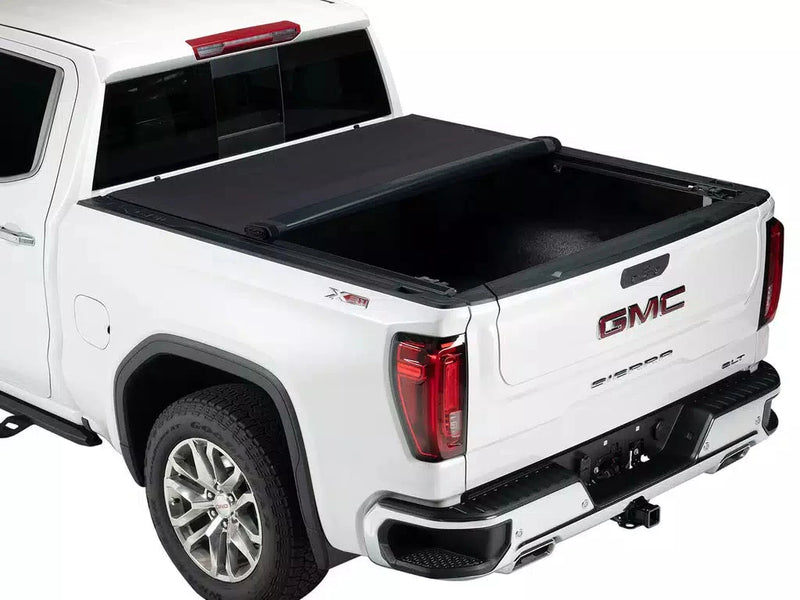

Truxedo Pro X15 Tonneau Cover
Compare our rack systems
| Elite Series Bed Rack | Elite T-Slot Tonneau Mount | Bed Bar System V2 | |
|---|---|---|---|
| Best for | Maximum height, storage & accessory mounting | Trucks running a T-slot tonneau cover (Retrax XR, BAK X4TS, Truxedo TS) | Low-profile rooftop tent setups & sleek builds |
| Heights | 12″ / 19″ / 23″ / 25″ (+24″ Gladiator) | 12″ / 19″ / 23″ / 25″ (+24″ Gladiator) | 6″ fixed low profile |
| Mounts to | Bed rails — factory rails, bolt-through, or no-drill clips | Your tonneau cover's T-slot rails — no drilling | Bed rails — hardware included, matched to your truck |
| Tonneau compatible | Soft roll-up covers; some folding & retractable — check fit | Requires a T-slot rail cover | Almost any cover style (+ T-slot kit) |
| Capacity | 350 lb dynamic / 900 lb static — all systems, all rust-free | ||
| From | $1,624.00 — configure | $1,624.00 — configure | $1,349.00 — configure |
Bed racks that work with your tonneau cover
You shouldn't have to choose between your tonneau cover and a bed rack. ORO Bed Bars mount over the bed rails and clear almost every cover style — roll-up, folding, and retractable — so your gear rides up top while your cover keeps working underneath. Running a full-height Elite Series rack? Pair it with the T-slot tonneau mount and an inside-rail cover. Every rack is aluminum, made in Canada, and rated 350 lb dynamic / 900 lb static.
Which racks work with which covers
| Rack | Roll-up (soft) | Folding (tri-fold) | Retractable | Hard one-piece | Inside-rail / T-slot |
|---|---|---|---|---|---|
| Bed Bar Systems (V1 & V2) | Yes | Yes | Yes | Check fit | Yes |
| Elite Series (full height) | Yes | Some — check fit | Some — check fit | No | Yes — with T-slot tonneau mount |
Not sure which cover style you have? Read the tonneau cover & bed rack guide or send us a photo of your bed rails — we'll confirm fitment before you order.
How it mounts over your cover
Both Bed Bars and the full-height rack clamp directly to your truck's bed rails — then your tonneau cover's rails clamp over top of the rack's mounting. We recommend a strip of foam weatherstripping between the two for a snug, rattle-free seal.
Running a T-slot cover like the BAK Revolver X4TS or Retrax XR? We include hardware that bolts the rack straight into the cover's T-slot rails.
The rack structure is 5052 aluminum with 6063-T6 load bars, so the added weight over your cover is minimal.
Tonneau-compatible racks for your truck
Tonneau cover + bed rack FAQ
Can you have a bed rack and a tonneau cover at the same time?
Yes. ORO Bed Bars are designed to mount over the bed rails and clear the cover — roll-up, folding, and retractable tonneau covers all keep full function underneath the rack.
Do bed racks work with folding tonneau covers?
Bed Bars do. The rack sits above the cover's rails, so a tri-fold cover opens and folds normally. Full-height Elite Series racks require an inside-rail cover with the T-slot tonneau mount instead.
What is a T-slot tonneau mount?
It's a mounting system that lets the Elite Series bed rack attach to the T-slot rails of compatible inside-mount tonneau covers, like the BAK Revolver X4ts — the rack and the cover share the same rail system.
Will a bed rack damage my tonneau cover?
No. The rack doesn't contact the cover — it clamps to the truck bed rails and spans above the cover's operating space.
How much weight can I carry with a tonneau cover installed?
The cover doesn't change the rack's rating: 350 lb dynamic (driving) and 900 lb static (parked), evenly distributed. The load goes through the rack into the bed rails, not through the cover.
